High Precision CNC Machining

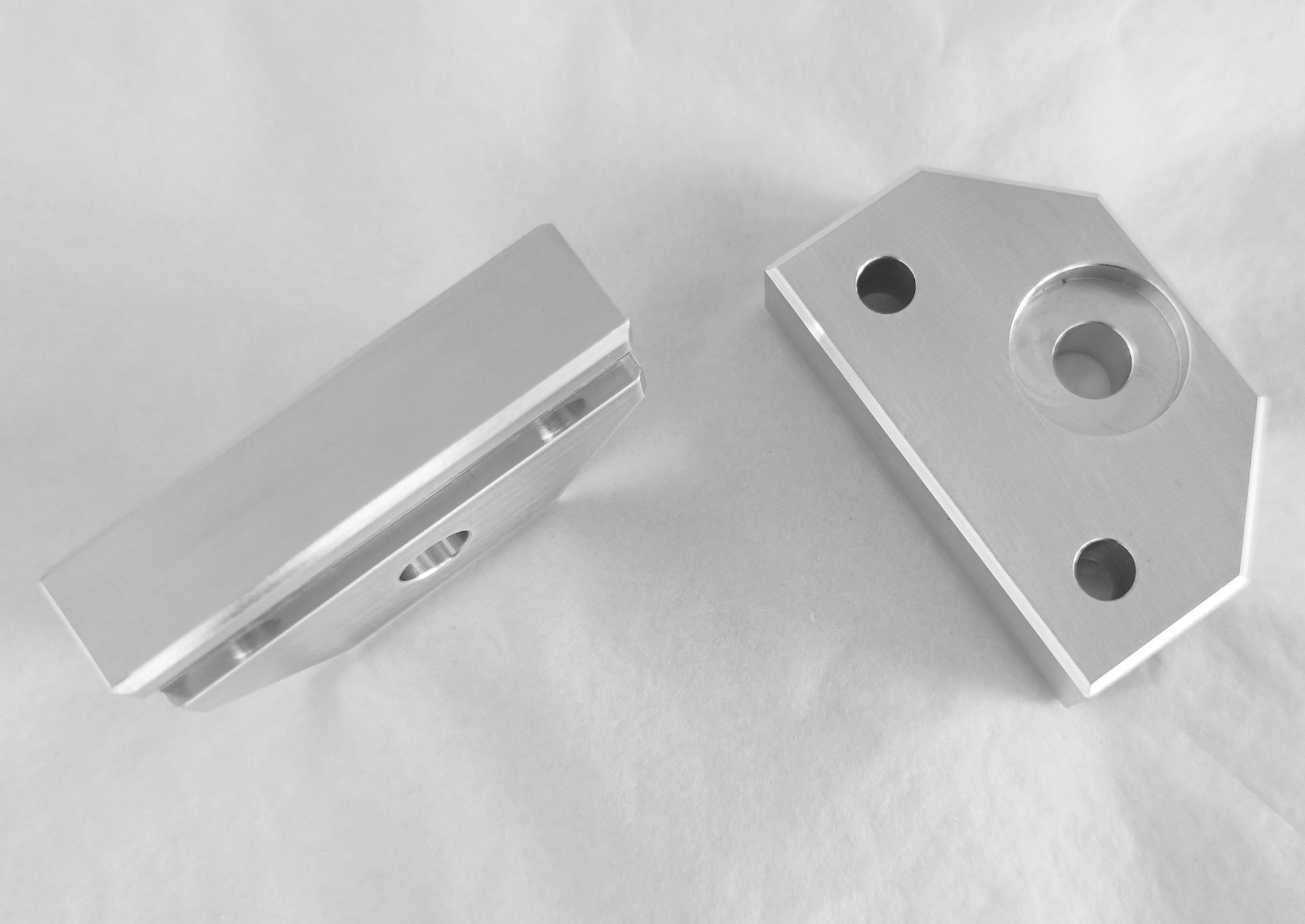

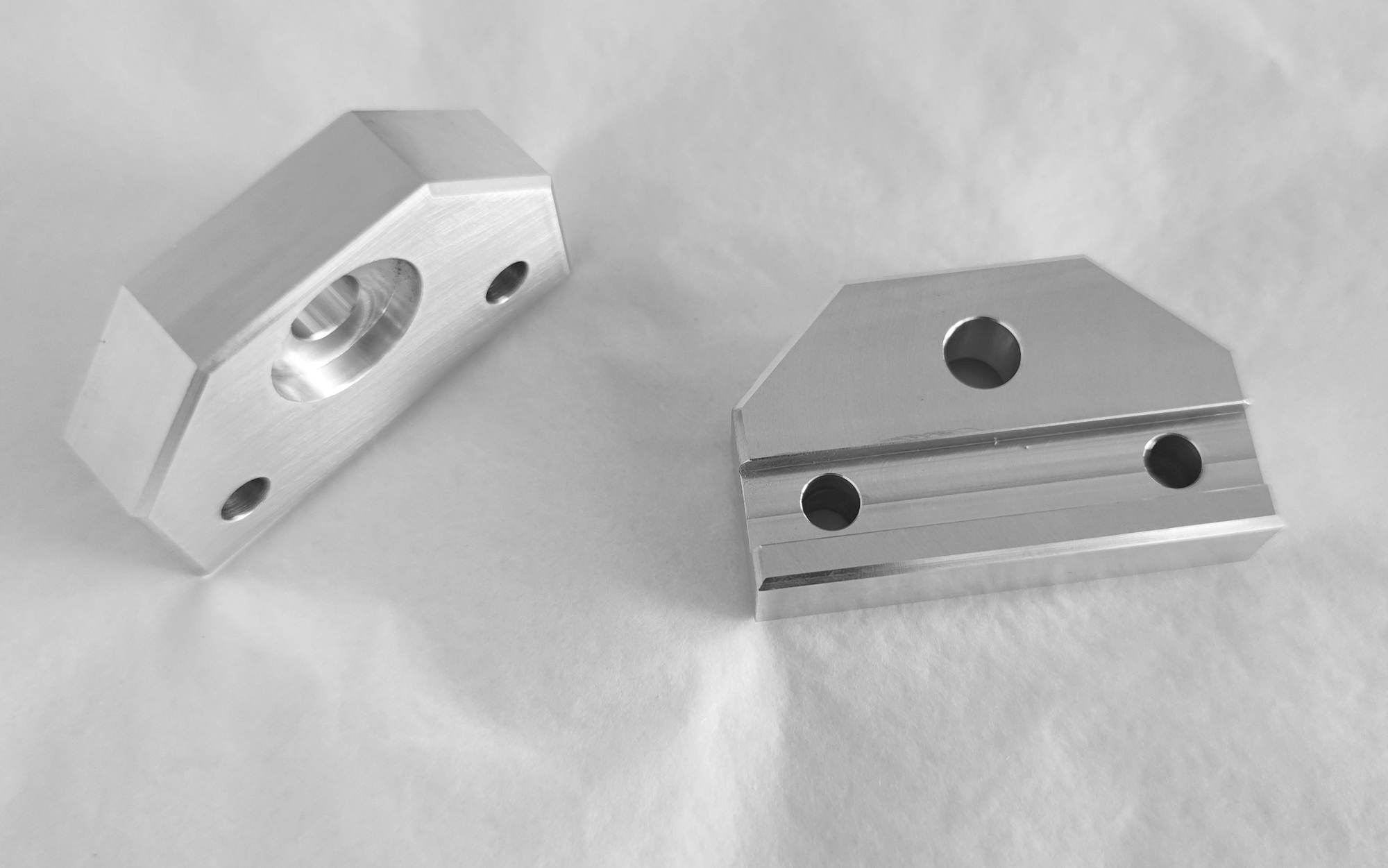

Custom Precision Machining component-Automatic Feeder parts

Item No.: WVG2208-8
Material: Aluminum
Process:EDM, CNC Turning, Milling, EDM and Anodizing
Surface Roughness: Standard (3.2 μm Ra)
Tolerance: : ±0.01mm
Description Review
Description

Specification
Material Name Grade
Steel Alloys AISI A6 AISI 01 SK-5 SKD11
4145H MOD 4140 4340
4330V SAE 52100 8620
Stainless Steel SUS303 SUS304 SUS316
SUS316L 17-4PH 15-5PH
H1025 9Cr 13Cr
Aluminium Alloys AL6061 AL6082
AL7075 AL8081
Copper Alloys Bearing Bronze Brass
C36000 CU1100
Tungsten/Copper
Engineering Plastics PEEK PTFE UHMW-PE
Delrin ABS Nylon
Capability Machining Product Size Tolerance
CNC Turning φ1 - φ160 * 550 mm +/-0.003 mm
CNC Milling 1270 * 508 * 635 mm(max) 1+/-0.001 mm
Grinding 1200 * 600 * 400 mm(max) +/-0.001 mm
Surface finishing Anodising Clear,  Black,  Blue, Green, Gold,  Red
Hard Nodising Clear,  Black
Alodine MIL-C-5541 Hard Chrome Plating / Decorative Chrome Plating
Electroless Nickel Plating Zinc Plating, Blue, White, Red, Yellow, Black
Titanium Plating/Copper Plating/Gold / Silver Plating
Black Oxide/Black Oxide for Stainless Steel QPQ
Teflon Coating/Powder Paint
Electro Chemical Polish
Heat treatment Passivation of Stainless Steel
Screen Printing / Laser Engraving
Plasma Nitridation/Gas Nitridation/Carbon Nitridation
Carburize/QuenchingTempering
Drawing Format IGS,STP,X_T ,DXF,DWG , Pro/E,   PDF
Inspection instrument Projector, CMM, Altimeter,Micrometer, Height Gauge, Thread Gauge, Calipers, Pin Gauge etc.
Designs Customer supply 2D/3D drawing
Lead time 7 days for Sample; 15~21 days for Main production
Packing  EPE foam wrapped, wooden case. or as per request
Logo OEM
